Custom Brass Inserts Manufacturer | OEM Custom Design Threaded Inserts | Precision CNC Machined Brass Molding Components

1. Introduction & Manufacturing Overview

Welcome to Bharti Enterprise, your premier destination for high-quality, high-precision Custom Brass Inserts designed exactly as per customer specifications, drawings, or samples. In todays fast-paced engineering world, standard off-the-shelf fasteners often fall short of meeting the rigorous demands of specialized product designs. Recognizing this challenge, we leverage our state-of-the-art manufacturing facility equipped with advanced automatic lathes and high-speed CNC turning centers to deliver bespoke, tailor-made OEM Brass Inserts that fit seamlessly into your assemblies [cite: Gemini Chat. Evidence: User provided a script for a corporate video detailing the history and certifications of Bharti Enterprise, a manufacturer established in 1979 that produces brass components and CNC machined parts. Date: 2026-04.].

Whether your project requires complex internal geometries, unique external knurling, strict weight limitations, or micro-sized threading, our experienced engineering team possesses the technical expertise to turn your blueprints into high-performance realities. We cater to global industries ranging from automotive electronics and aerospace to medical devices, telecommunications, and premium consumer goods.

2. The Importance of Customization in Threaded Fasteners

Every plastic materialwhether it is ABS, Polycarbonate, Polypropylene, Nylon, or advanced PEEKreacts differently to mechanical stresses, thermal expansion, and torque loads. A standard insert might cause cracking in brittle plastics or fail under high vibration. Our Custom Design Brass Inserts allow engineers to specify the exact pitch, depth, wall thickness, and knurling aggressiveness required to maximize both torque-out and pull-out resistance for their specific host material. By customizing the insert, you optimize the structural integrity of your final product, reduce assembly rejection rates, and significantly enhance overall product longevity.

3. Comprehensive Technical Information & Specifications

A. Material Selection & Metallurgy Grades

We understand that material purity dictates the strength and machinability of a fastener. We source certified, premium-grade extruded brass rods to manufacture our custom components, offering several alloy options based on your application needs:

• Free Cutting Brass: IS 319 (Type I, II, III), CZ121, CuZn39Pb3. Ideal for high-speed CNC turning, ensuring ultra-smooth surface finishes and sharp thread profiles.

• High-Tensile Brass: CuZn37Pb2, CZ131. Best suited for heavy-duty industrial applications requiring maximum mechanical strength.

• RoHS & REACH Compliant Brass: Lead-free or low-lead brass alloys (Lead < 0.1%). Specifically used for components exported to the European Union and North American markets, ensuring compliance with strict environmental and safety regulations.

B. Threading Profiles & Geometric Varieties

Our CNC setup allows us to cut flawless, burr-free threads adhering to international standards:

• Thread Sizes: Micro-miniature M1, M1.6, M2 up to heavy-duty M24 and custom larger diameters.

• Thread Types: Metric (6H medium class fit standard), UNC, UNF, UNEF, BSW (Whitworth), BA, and specialized ACME or multi-start threads.

• Internal Fitment: Through-threaded (Open End) for long bolt clearance, or Closed-End (Blind Hole) to prevent plastic flash or fluid leakage during high-pressure molding.

C. Advanced External Knurling Designs

The outer body of the insert determines how well it locks into the plastic or composite material. We offer fully customized knurling styles:

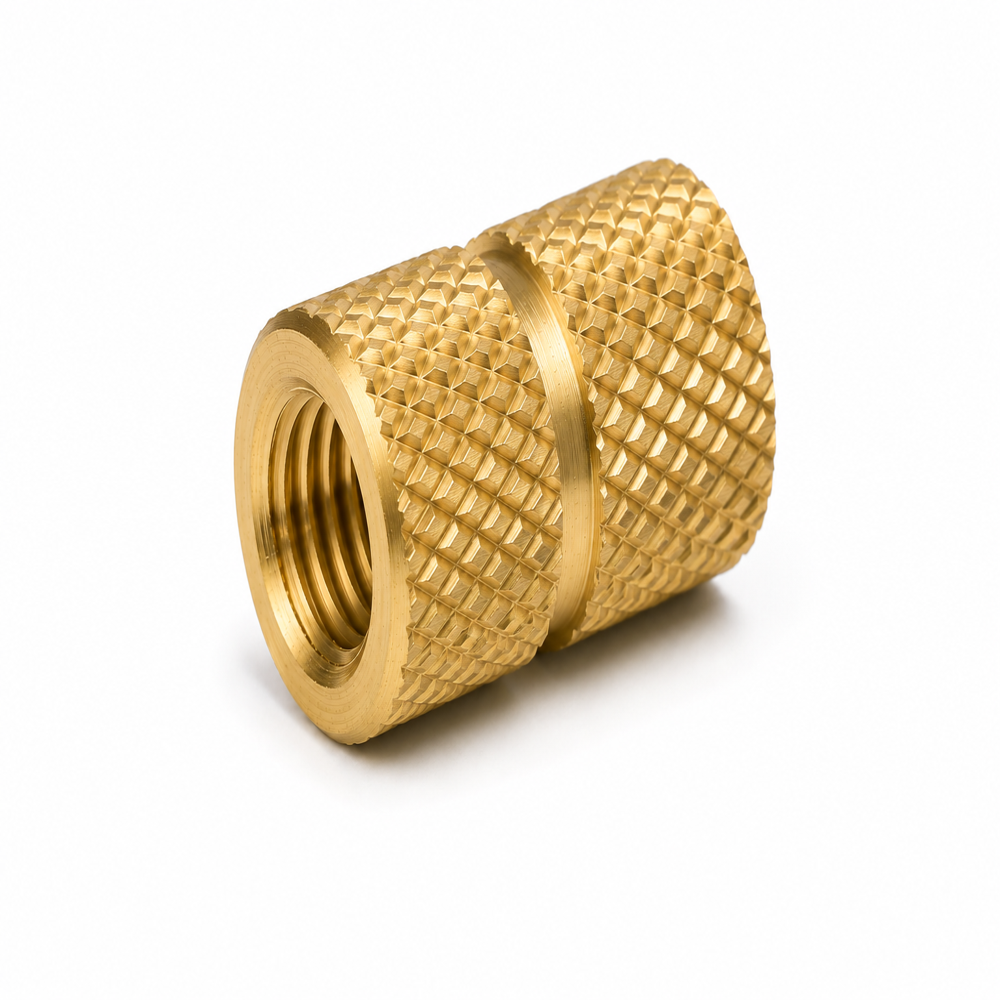

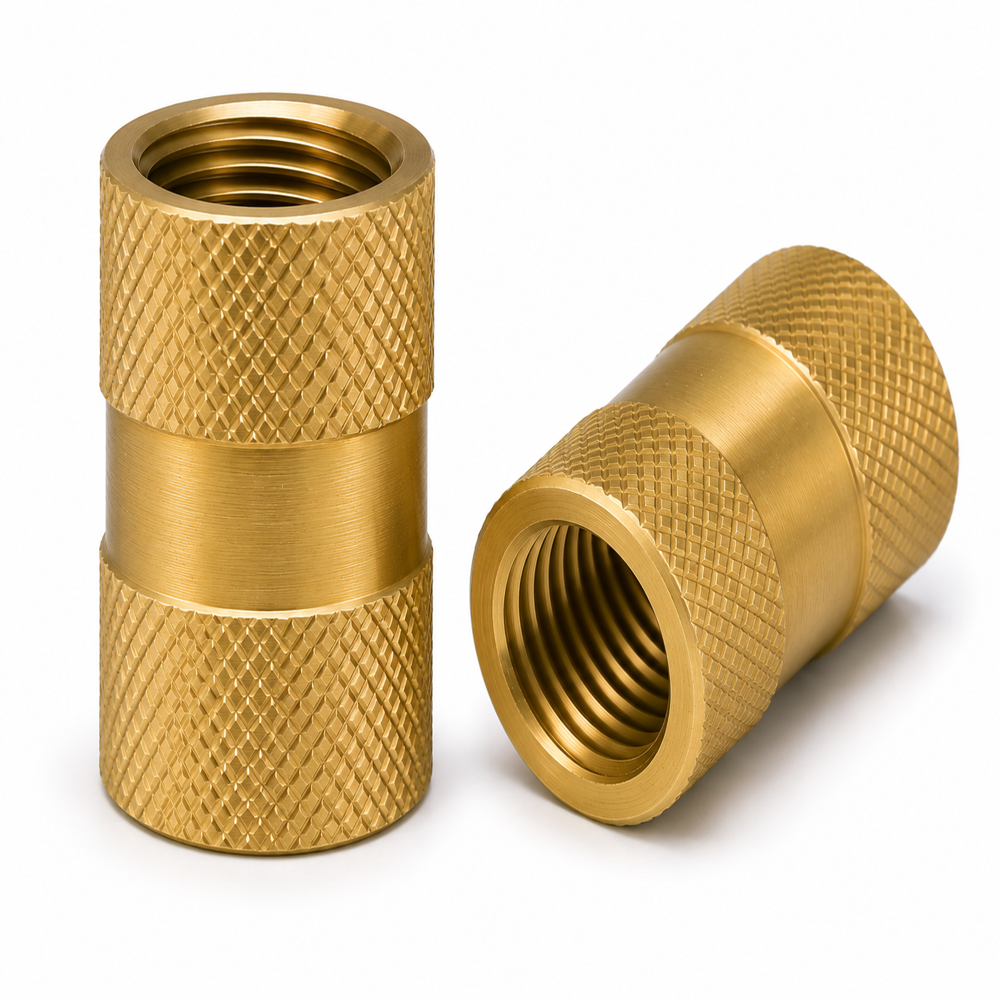

• Diamond Knurling (Cross Pattern): Provides excellent resistance against both rotational torque and axial pull-out forces.

• Straight Knurling: Ideal for ultrasonic or heat-staking installation, allowing smooth plastic melt flow along the vertical grooves.

• Helical / Spiral Knurling (Left or Right Hand): Offers high tensile strength in softer plastics or foam-based composites.

• Undercuts and Grooves: Custom peripheral grooves can be machined into the body to allow the molten plastic to lock solid, preventing any vertical movement.

D. Dimensional Tolerances

Operating with precision CNC machining centers, we consistently achieve extremely tight tolerances:

• Linear Dimensions: Up to 0.01 mm to 0.02 mm.

• Thread Concentricity: Maintained within ultra-strict margins to ensure perfect alignment with automated robotic pick-and-place assembly lines.

4. Surface Treatment & Post-Machining Finishes

To protect against harsh environments and enhance aesthetic appeal, we offer a variety of surface treatments for our custom brass inserts:

• Natural Brass Polish: Cleaned, degreased, and brightened to showcase the premium golden brass finish.

• Nickel Plating (Bright or Matte): Provides exceptional resistance against wear, tear, and atmospheric corrosion. Prevents galvanic corrosion when the brass insert is used alongside steel or aluminum screws.

• Tin Plating: Enhances solderability, making it popular in electrical terminal block assemblies.

• Electro-less Nickel Plating: Ensures uniform thickness inside complex internal threads and deep blind holes.

5. Engineering Support & Quality Control

Quality is embedded into every step of our manufacturing workflow at Bharti Enterprise. Our quality control lab utilizes advanced testing instrumentation to ensure zero-defect shipments [cite: Gemini Chat. Evidence: User provided a script for a corporate video detailing the history and certifications of Bharti Enterprise, a manufacturer established in 1979 that produces brass components and CNC machined parts. Date: 2026-04.]:

• In-Process Inspection: Go/No-Go thread plug gauges are used at regular intervals right at the machine terminal.

• Profile Projector Analysis: Used to verify complex angles, knurling depth, and custom dimensions against the approved CAD drawing.

• Traceability: Raw material test certificates (MTC) are maintained for every batch of brass utilized.

6. Major Industrial Applications

Our Custom Brass Inserts find crucial roles in pioneering engineering sectors:

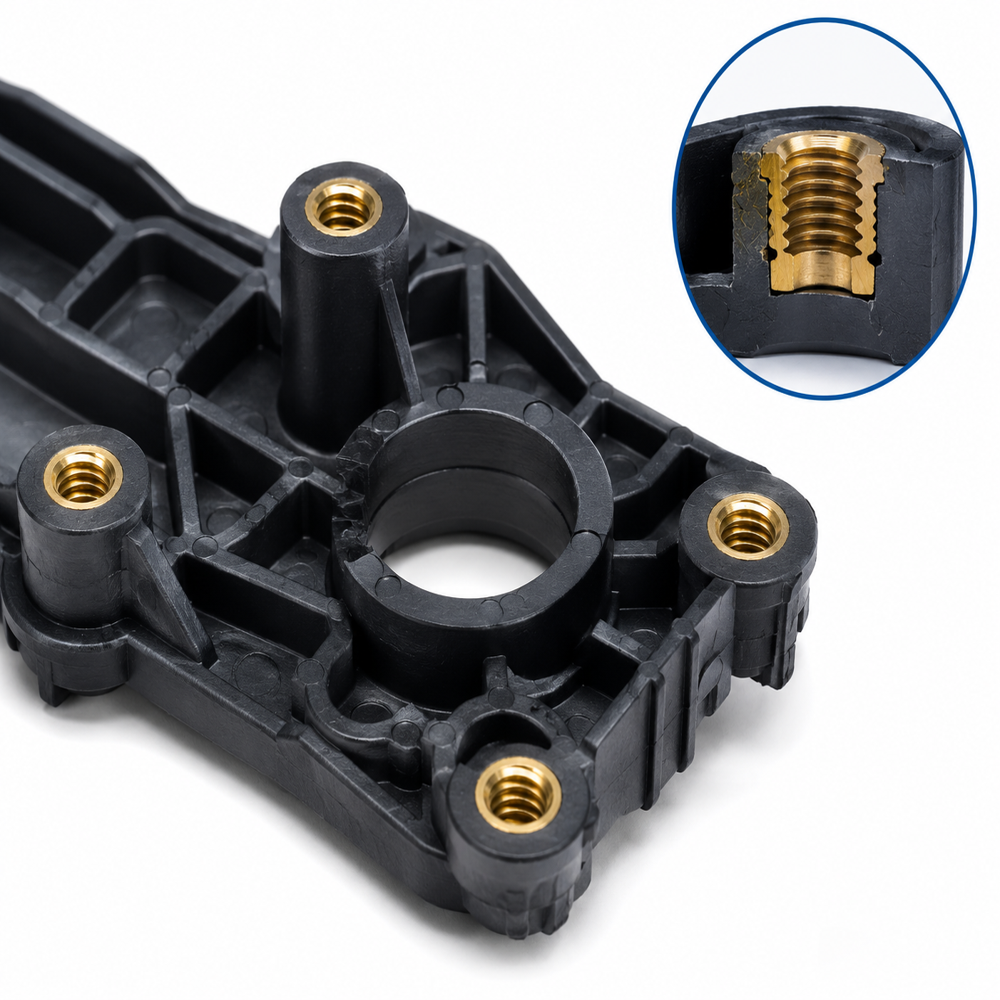

• Automotive Industry: Integrated into plastic intake manifolds, sensor housings, dashboard panels, and electric vehicle (EV) battery casings.

• Electrical & Electronics: Embedded within electrical switches, terminal boards, plug sockets, and consumer electronics enclosures.

• 3D Printing & Rapid Prototyping: Custom heat-set inserts used by engineers to create strong, reusable metal threads inside 3D-printed plastic parts.

• Plumbing & CPVC Fittings: Heavy-duty custom inserts molded into CPVC, PPR, and PVC pipe fittings for leak-proof brass-to-metal transitions.
