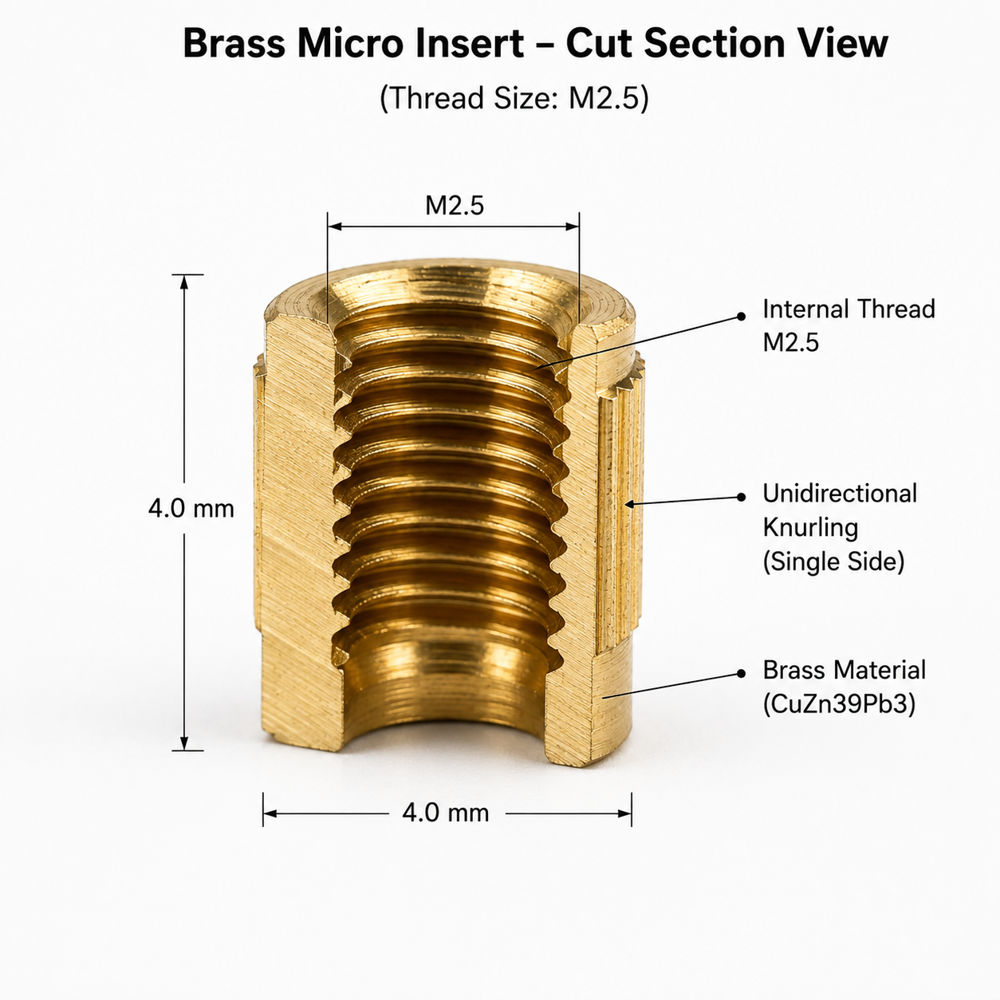

Brass Open Ended Inserts

Name: Brass Open Ended Inserts
Brand: Bharti Enterprise
Price: 8.8 INR
Availability: InStock

Price 8.8 INR/ Piece

Get a Price/Quote

MOQ : 50000 Pieces

Brass Open Ended Inserts Specification

Finish
We offer a wide range of surface finishes for Brass Open Ended Inserts to enhance corrosion resistance, conductivity, and aesthetic appearance as per application requirements. Natural Brass Finish Standard finish with good corrosion resistance for general applications Nickel Plated Brass Inserts Improved corrosion resistance with smooth, shiny surface finish Suitable for electrical and decorative applications Tin Plated Brass Inserts Excellent solderability and conductivity Ideal for electrical and electronic components Silver Plated Brass Inserts (On Request) Superior electrical conductivity Used in high-performance electrical applications Zinc Plating / Custom Coating (On Demand) Additional protection against oxidation and environmental exposure Passivation / Anti-Tarnish Coating Prevents discoloration during storage and transit

Product Type
Brass Insert with through hole

Material
IS 319 Brass (Indian Standard) General purpose brass, good machinability & strength CZ121 (CW614N) Free Cutting Brass (BS EN Standard) Excellent machinability, widely used for precision inserts CuZn39Pb3 (EN Standard) High corrosion resistance with smooth machining finish CW617N (Forging Brass) Higher strength, suitable for heavy-duty applications C36000 (Free Cutting Brass ASTM Standard) Preferred for high-speed CNC machining, excellent chip breaking Lead-Free Brass Grades (RoHS Compliant) Eco-friendly, suitable for European & USA regulations

Tolerance
0.06 Millimeter (mm)

Type
Brass Open Ended Insert

CNC Machining
Yes

Diameter
M3 to M12 or custom as required Millimeter (mm)

Connection
Other

Shape
Other

Customization
Available as per drawing/sample

Application
Plastic Mouldings, Thermoplastics, Thermosets

Material
High-grade Brass

Tested For
Pull-out, Torque, Vibration strength

Corrosion Resistance
High

Installation Method
Press Fit or Heat Fit

Thread Type
ISO Metric, BA, BSW, UN, UNC, UNF or as specified

Standards
RoHS and REACH compliant

Surface Finish
Polished/Gold-toned

Brass Open Ended Inserts Trade Information

Minimum Order Quantity
50000 Pieces

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cash Advance (CA)

Supply Ability
1000000 Pieces Per Month

Delivery Time
7 Days

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
Packed in polybags / LDPE bags Standard packing: 500 pcs / 1000 pcs or as required Strong corrugated box packing Proper labeling with product details & QC OK status Suitable for export (sea & air shipment) Pallet packing available (fumigated if required) Custom packaging & OEM branding available VCI / anti-rust protection available

Main Export Market(s)
South America, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, IATF 16949:2016 Certified, RoHS Compliance, REACH Compliance

Brass Open Ended Inserts About

Brass Open Ended Inserts Precision Threaded Inserts for Plastic, Wood & Metal Applications

Bharti Enterprise is a leading manufacturer and exporter of high-quality Brass Open Ended Inserts, also known as Brass Threaded Inserts, Brass Insert Nuts, and Open Type Brass Inserts, designed for secure and durable fastening in a wide range of industrial applications. We supply precision-engineered Brass Inserts for international markets including the UK, USA, and Europe.

Our Brass Open End Inserts are manufactured using premium-grade materials such as IS 319, CZ121, CuZn39Pb3, and CW614N, ensuring excellent strength, corrosion resistance, and long service life. These CNC Machined Brass Inserts provide strong internal threads and are ideal for repeated assembly and disassembly in plastic and wooden components.

We offer a wide range of Brass Threaded Inserts for Plastic, Brass Inserts for Wood, and Brass Inserts for Injection Molding Applications. Our products include Knurled Brass Inserts, Press Fit Brass Inserts, Heat Set Inserts, Ultrasonic Brass Inserts, and Custom Brass Insert Components as per drawings and specifications.

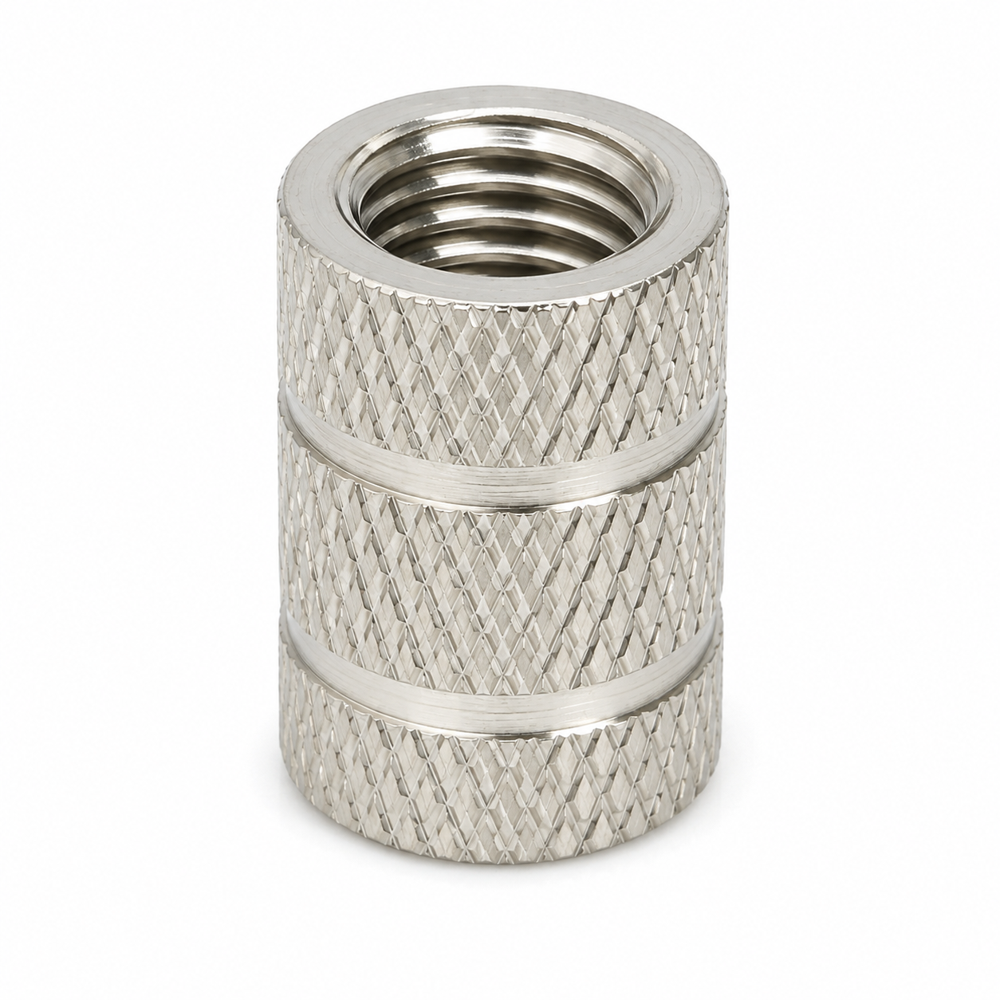

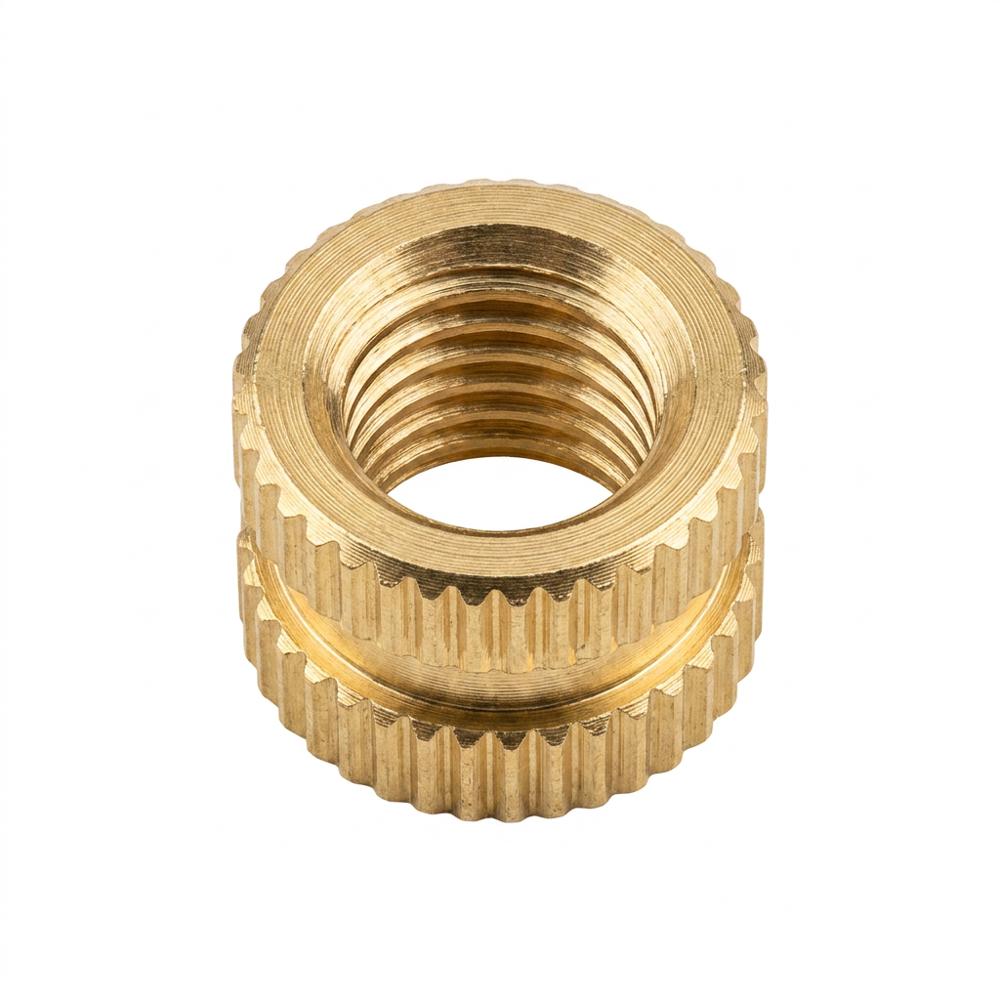

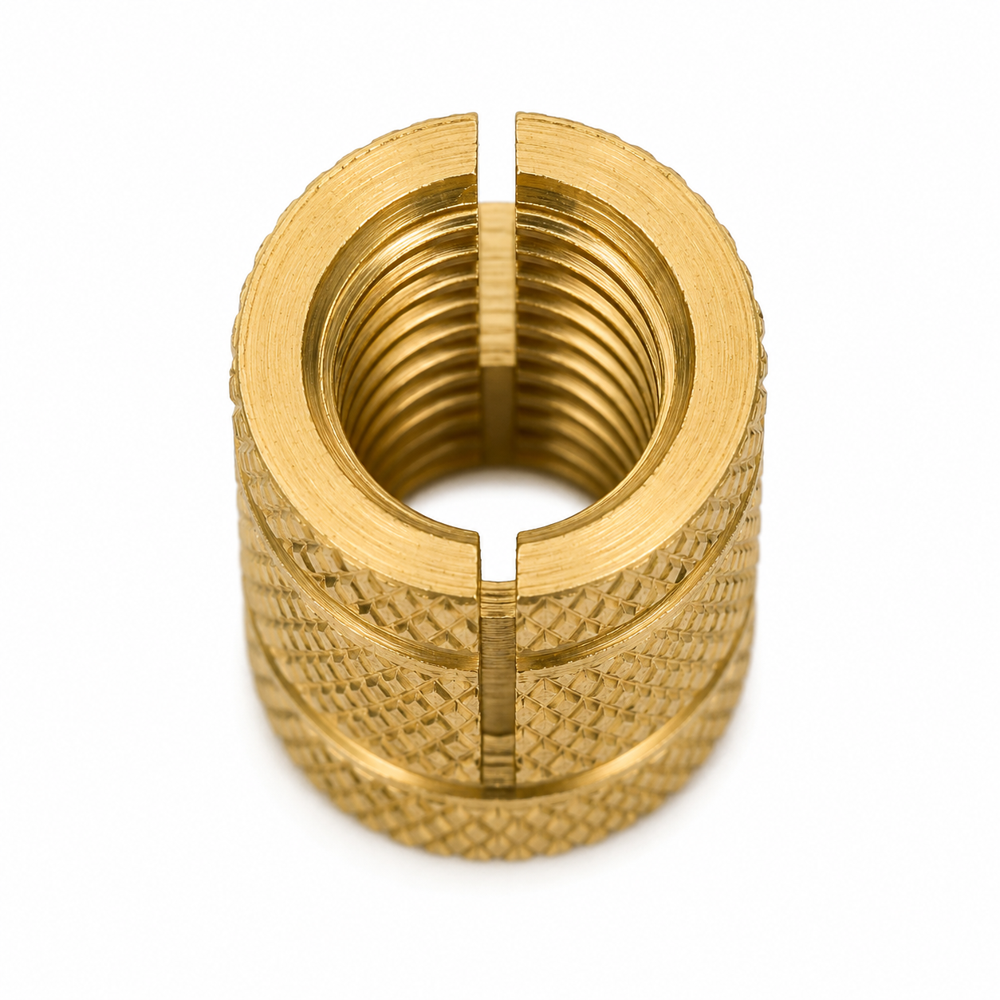

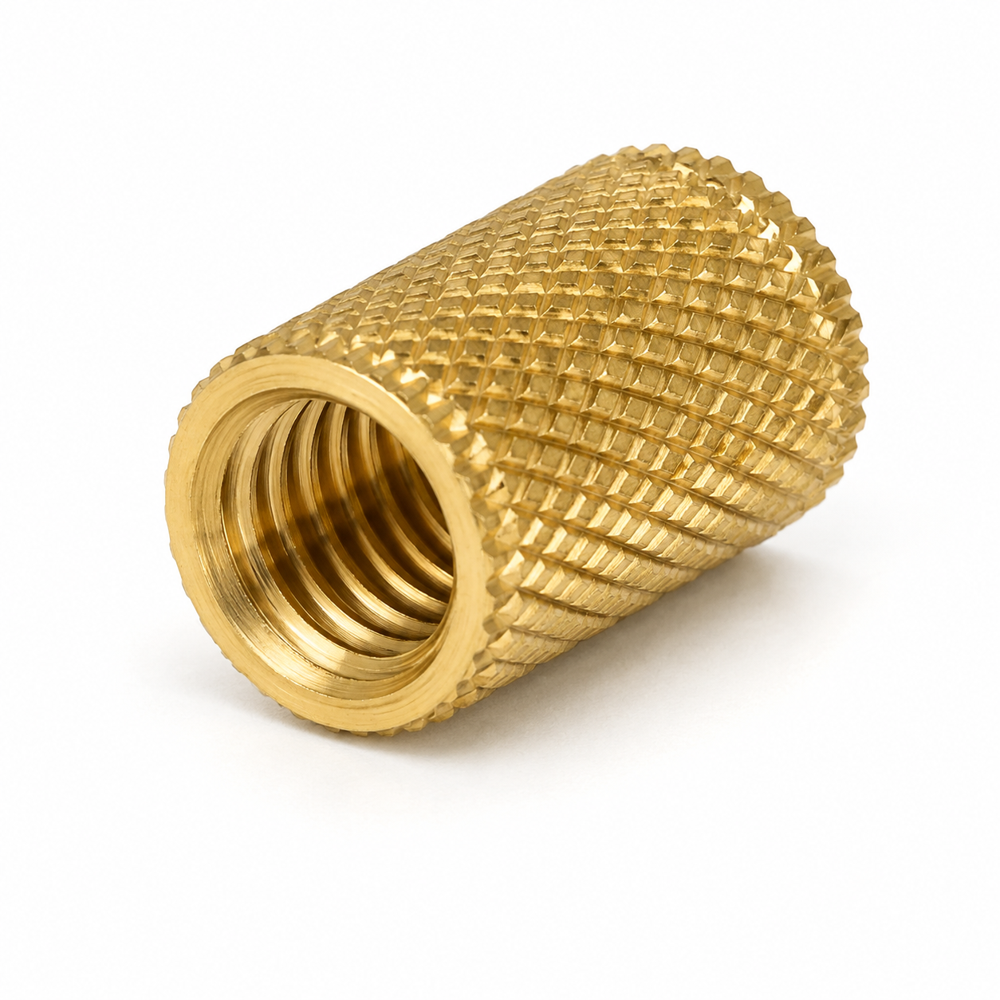

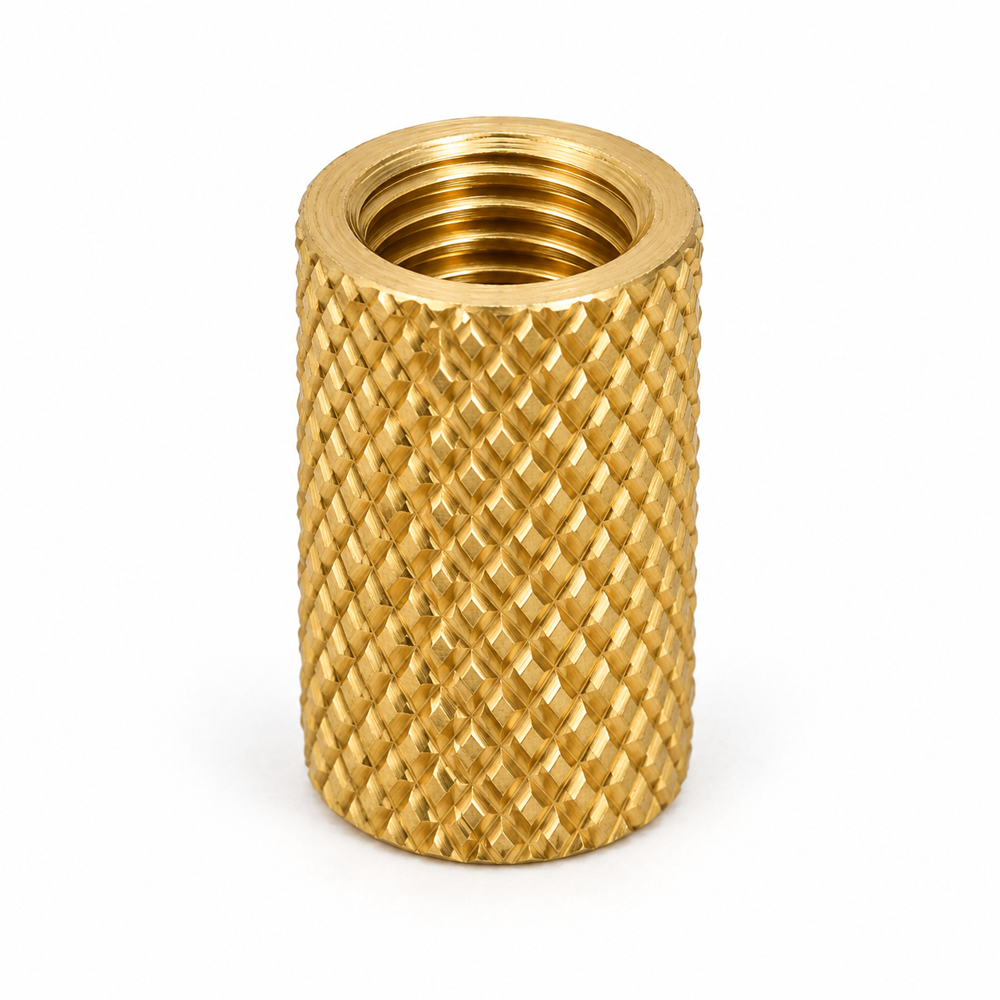

These Brass Open Type Inserts are available with diamond knurling, straight knurling, or customized patterns to ensure maximum grip and pull-out resistance. Surface finishes such as Natural Brass, Nickel Plated Brass Inserts, and Tin Plated Brass Inserts are available to meet specific application and environmental requirements.

All our Brass Inserts are manufactured under strict quality control and can be supplied as RoHS Compliant Brass Inserts and Export Quality Brass Threaded Components for OEM and industrial applications.

Key Features:
High precision internal threading for strong fastening
Excellent corrosion resistance and durability
Superior grip with knurled design
Suitable for plastic, wood, and composite materials
Available in multiple sizes, threads, and finishes

Applications:
Plastic molding and injection molding industries
Furniture and wood applications
Automotive and electrical components
Consumer electronics and appliances
Industrial and OEM assemblies

Bharti Enterprise offers a complete range of Brass Open Ended Inserts, Brass Threaded Inserts, and Precision Brass Insert Components with consistent quality, competitive pricing, and reliable global export support.

FAQ's of Brass Open Ended Inserts:

Q: How are Brass Open Ended Inserts installed?

A: Brass Open Ended Inserts can be installed using Press Fit or Heat Fit methods, depending on the application and substrate material. These methods ensure a secure and durable connection within thermoplastics or thermosets.

Q: What thread types are available for Brass Open Ended Inserts?

A: These inserts are offered in ISO Metric, BA, BSW, UN, UNC, UNF threads, or can be customized according to your drawing or sample to meet specific application requirements.

Q: When should I use Brass Open Ended Inserts in plastic components?

A: Use Brass Open Ended Inserts in plastic mouldings or assemblies when you require robust, corrosion-resistant, and reusable threaded connections, especially in environments with high torque or vibration demands.

Q: Where are Brass Open Ended Inserts most commonly applied?

A: They are frequently used in electronic assemblies, automotive parts, industrial machines, and commercial appliances where durable, reliable threaded connections are essential.

Q: What is the process for requesting customization or samples?

A: Simply share your drawing or sample, and we will provide customized inserts or samples. Our team will guide you through the estimate, packaging, and logistics details for timely arrival.

Q: How do Brass Open Ended Inserts benefit commercial applications?

A: Brass Open Ended Inserts deliver superior mechanical strength, excellent corrosion resistance, and repeatable performance, significantly improving the longevity and reliability of threaded joints in commercial products.
